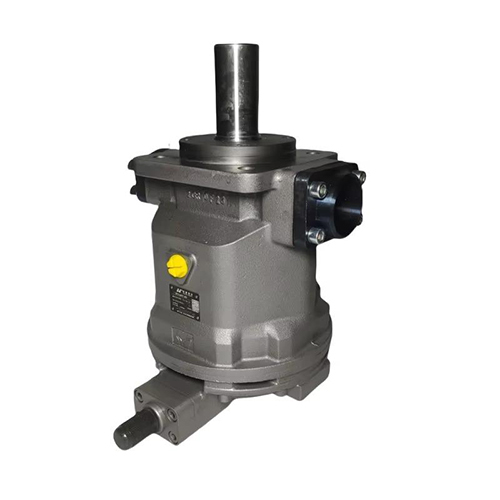

Piston Pump

• Application
• Other, Hydraulic Press, Injection Molding, Construction Equipment, Agriculture Machinery

• Caliber
• Customizable as per requirements

• Capacity
• Varies with model

• Control System
• Manual/Automatic Flow and Pressure Control

• Discharge Pressure
• Up to 400 bar

• Features
• High efficiency, Low noise, Compact design, Durable construction, Easy maintenance

• Flow Rate
• 10 to 500 LPM (varies by model)

• Frequency
• 50/60 Hz (Electric motor models)

• Fuel Type
• Other, N/A (Hydraulic oil used as medium)

• Head Size
• Varies by application

• Inlet/Outlet
• Threaded/Flanged Ports

• Material
• Cast Iron/High-Strength Alloy Steel

• Max Suction
• Up to 8m

• Mounting Type
• Flange Mounted/Foot Mounted

• Noise Level
• 65-75 dB (A)

• Power
• Other, Hydraulic/Electric Motor Driven

• Pressure
• Other, Up to 400 bar

• Priming
• Self-priming

• Pump Type
• Other, Axial Piston Pump

• Seals Type
• High-Pressure Nitrile or Viton Seals

• Speed
• 400 to 3500 RPM

• Standard
• ISO 9001/CE/Other International Standards

• Structure
• Other, Fixed or Variable Displacement, Axial Design

• Suction Type
• Positive displacement suction

• Theory
• Other, Axial Piston

• Usage
• Other, Hydraulic Systems, Machinery, Industrial Equipment

• Working Temperature
• -20C to 80C

• Application
• Other, Water, Oil, Chemicals

• Caliber
• DN15 to DN50

• Capacity
• up to 30 m3/h

• Control System
• Manual / Automatic

• Discharge Pressure
• up to 350 Bar

• Features
• Corrosion Resistant, Compact Design, High Efficiency

• Flow Rate
• Up to 50 L/min

• Frequency
• 50 Hz / 60 Hz

• Fuel Type
• Other, Electric

• Head Size
• Up to 250 m

• Inlet/Outlet
• Threaded or Flanged

• Material
• Cast Iron / Stainless Steel

• Max Suction
• 6 m

• Mounting Type
• Flange Mounted

• Noise Level
• Low Noise Design

• Power
• Other, 0.75 kW - 5.5 kW

• Pressure
• High Pressure

• Priming
• Self Priming

• Pump Type
• Other, Axial / Radial Piston Pump

• Seals Type
• Mechanical Seal

• Speed
• 1450 rpm / 2850 rpm

• Standard
• ISO 9001

• Structure
• Other, Vertical

• Suction Type
• Single / Double

• Theory
• Reciprocating Pump

• Usage
• Other, Industrial / Agricultural / Water Supply

• Voltage
• 220V / 380V

• Working Temperature
• -10C to 80C

• Application
• Other, Hydraulic Circulation, Press Machines, Excavators

• Caliber
• Standard Hydraulic Port Sizes

• Capacity
• Variable, up to 140 cc/rev (model dependent)

• Control System
• Hydraulic Control Valve

• Discharge Pressure
• 350 bar Max.

• Features
• High efficiency, durable, compact design

• Flow Rate
• Up to 140 L/min (varies by model)

• Frequency
• Not Applicable (Hydraulic)

• Fuel Type
• Other, Not Applicable (Hydraulic Fluid)

• Head Size
• Depends on Hydraulic System

• Inlet/Outlet
• Threaded Port/Flange Connection

• Material
• Precision Cast Iron/Steel

• Max Suction
• Up to -0.8 bar (typical suction capability)

• Mounting Type
• Flange Mounted

• Noise Level
• Low Noise (as per Rexroth Norms)

• Power
• Other, Hydraulic Driven

• Pressure
• Other, Up to 350 bar (varies by model)

• Priming
• Self-priming

• Pump Type
• Other, Axial Piston Pump

• Seals Type
• NBR/FKM (Standard available options)

• Speed
• 1000 - 2800 RPM (typical range)

• Standard
• Rexroth Hydraulic Components Standard

• Structure
• Other, Axial Piston Pump

• Suction Type
• Direct Suction

• Theory
• Other, Axial Piston Principle

• Usage
• Other, Industrial Machinery, Construction Equipment

• Voltage
• Not Applicable (Hydraulic Pump)

• Working Temperature
• -20C to +80C (typical range)
